Sorting rule
TypeScript type: SortingRule.
Sorting rules provide a way to either disable sorting or sort instances by specific properties. There are 2 types of sorting rules for both of these scenarios.
Property sorting rule
Rule to configure sorting for certain ECInstances in the hierarchy and/or content. It is possible to configure different sorting for different types of ECInstances.
Multiple sorting rules may be applied for the same instances - in this case the instances are first sorted by the highest priority rule and then the lower priority ones.
Note: This rule is not meant to be used to sort grouping nodes, custom nodes or other non ECInstance type of nodes.
Attributes
| Name | Required? | Type | Default |
|---|---|---|---|
| Filtering | |||
requiredSchemas |
No | RequiredSchemaSpecification[] |
[] |
priority |
No | number |
1000 |
condition |
No | ECExpression | "" |
class |
No | SingleSchemaClassSpecification |
All classes in current context |
isPolymorphic |
No | boolean |
false |
| Sorting | |||
propertyName |
Yes | string |
|
sortAscending |
No | boolean |
true |
Attribute: requiredSchemas
A list of ECSchema requirements that need to be met for the rule to be used.
| Type | RequiredSchemaSpecification[] |
| Is Required | No |
| Default Value | [] |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there is a customization rule to sort
// instances by `Pitch` property. Sorting rule requires `BisCore` schema to be higher than 1.0.2.
// If this requirement is not met sorting rule does not take effect.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
requiredSchemas: [{ name: "BisCore", minVersion: "1.0.2" }],
propertyName: "Pitch",
},
],
};

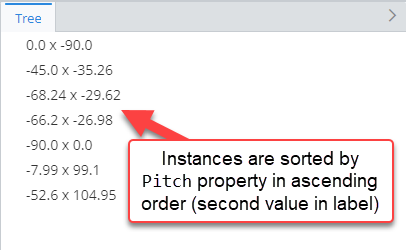

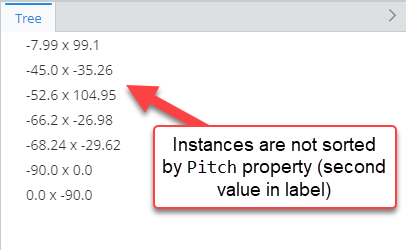

| Result | |
|---|---|
minVersion: 1.0.2 |
 |
minVersion: 2.0.2 |
 |
Attribute: priority
Defines the order in which rules are handled - higher priority means the rule is handled first. If priorities are equal, the rules are handled in the order they're defined.
| Type | number |
| Is Required | No |
| Default Value | 1000 |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are two customization rules to sort
// instances by `Roll` and `Pitch` properties. The rules have different priorities and higher priority
// rule is handled first.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
priority: 1,
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
propertyName: "Roll",
},
{
ruleType: "PropertySorting",
priority: 2,
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
propertyName: "Pitch",
},
],
};
Attribute: condition
Defines a condition which needs to be met in order for the rule to be used. The condition is an ECExpression which has to evaluate to a boolean value.
| Type | ECExpression |
| Is Required | No |
| Default Value | "" |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are customization rule to sort
// instances by `Pitch` property.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
condition: "TRUE",
propertyName: "Pitch",
},
],
};
| Condition evaluation result | Result |
|---|---|
true |
|
false |
|
Attribute: class
Specifies ECClass whose ECInstances should be sorted.
| Type | SingleSchemaClassSpecification |
| Is Required | No |
| Default value | All classes in current context |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are customization rule to sort
// `bis.SpatialViewDefinition` instances by `Pitch` property
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
propertyName: "Pitch",
},
],
};
Attribute: isPolymorphic
Specifies that class attribute defined in this rule should be handled polymorphically.
| Type | boolean |
| Is Required | No |
| Default Value | false |
// This ruleset lists `bis.SpatialViewDefinition` instances with their `Roll` and `Pitch` properties as instance
// labels. Sorting rule targets `bis.ViewDefinition3d`, the base class of `bis.SpatialViewDefinition`, so to
// sort instances of the derived classes, `isPolymorphic` attribute needs to be `true`.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
class: { schemaName: "BisCore", className: "ViewDefinition3d" },
isPolymorphic: true,
propertyName: "Pitch",
},
],
};
| Result | |
|---|---|
isPolymorphic: true |
|
isPolymorphic: false |
|
Attribute: propertyName
Specifies name of the property which should be used for sorting.
| Type | string |
| Is Required | Yes |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are customization rule to sort
// instances of any class by `Pitch` property.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
propertyName: "Pitch",
},
],
};
Attribute: sortAscending
Specifies whether instances should be sorted in ascending order or descending.
| Type | boolean |
| Is Required | No |
| Default Value | true |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are customization rule to sort
// instances by `Pitch` property in descending order
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
propertyName: "Pitch",
sortAscending: false,
},
],
};

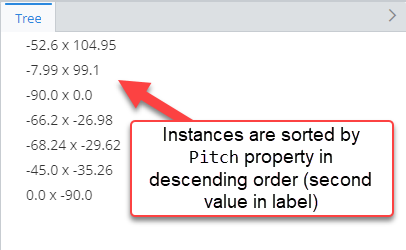

| Result | |
|---|---|
sortAscending: true |
|
sortAscending: false |
 |
Disabled sorting rule
Rule to disable sorting for certain ECInstances in the hierarchy and/or content.
Note: Disabling sorting increases performance
Attributes
| Name | Required? | Type | Default |
|---|---|---|---|
| Filtering | |||
requiredSchemas |
No | RequiredSchemaSpecification[] |
[] |
priority |
No | number |
1000 |
condition |
No | ECExpression | "" |
class |
No | SingleSchemaClassSpecification |
All classes in current context |
isPolymorphic |
No | boolean |
false |
Attribute: requiredSchemas
A list of ECSchema requirements that need to be met for the rule to be used.
| Type | RequiredSchemaSpecification[] |
| Is Required | No |
| Default Value | [] |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there is a customization rule to sort
// instances by `Pitch` property. Sorting rule requires `BisCore` schema to be higher than 1.0.2.
// If this requirement is not met sorting rule does not take effect.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
requiredSchemas: [{ name: "BisCore", minVersion: "1.0.2" }],
propertyName: "Pitch",
},
],
};
| Result | |
|---|---|
minVersion: 1.0.2 |
|
minVersion: 2.0.2 |
|
Attribute: priority
Defines the order in which rules are handled - higher priority means the rule is handled first. If priorities are equal, the rules are handled in the order they're defined.
| Type | number |
| Is Required | No |
| Default Value | 1000 |
// The ruleset has root node rule that returns `bis.SpatialViewDefinition` instances with labels
// consisting of `Roll` and `Pitch` property values. Also there are two customization rules to sort
// instances by `Roll` property and to disable `bis.SpatialViewDefinition` instances sorting.
// The disabled sorting rule has higher priority and it is handled first.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["SpatialViewDefinition"] },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
values: [
{
specType: "Composite",
separator: " x ",
parts: [{ spec: { specType: "Property", propertyName: "Roll" } }, { spec: { specType: "Property", propertyName: "Pitch" } }],
},
],
},
{
ruleType: "PropertySorting",
priority: 1,
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
propertyName: "Pitch",
},
{
ruleType: "DisabledSorting",
priority: 2,
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
},
],
};

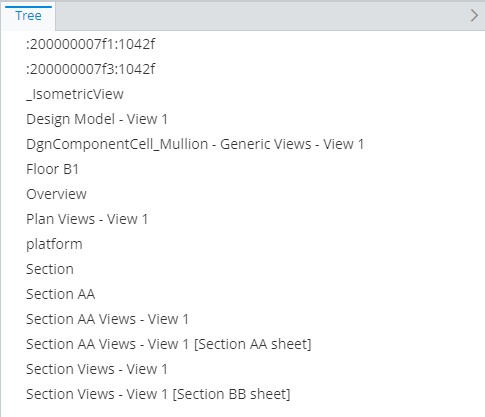

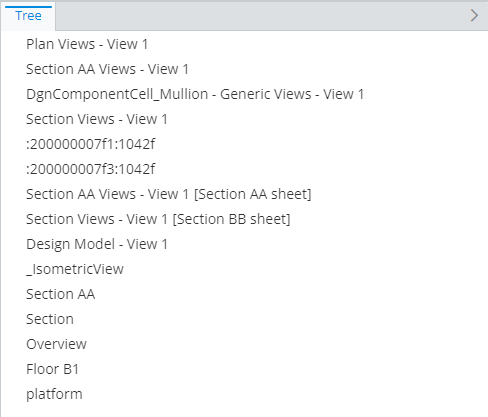

Attribute: condition
Defines a condition which needs to be met in order for the rule to be used. The condition is an ECExpression which has to evaluate to a boolean value.
| Type | ECExpression |
| Is Required | No |
| Default Value | "" |
// The ruleset has root node rule that returns `bis.ViewDefinition` instances with labels
// consisting of `CodeValue` property value. Also there are customization rule to disable
// instances sorting.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["ViewDefinition"], arePolymorphic: true },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "ViewDefinition" },
values: [
{
specType: "Property",
propertyName: "CodeValue",
},
],
},
{
ruleType: "DisabledSorting",
condition: "TRUE",
},
],
};
| Condition evaluation result | Result |
|---|---|
true |
 |
false |
 |
Attribute: class
Specifies ECClass whose instances should not be sorted.
| Type | SingleSchemaClassSpecification |
| Is Required | No |
| Default value | All classes in current context |

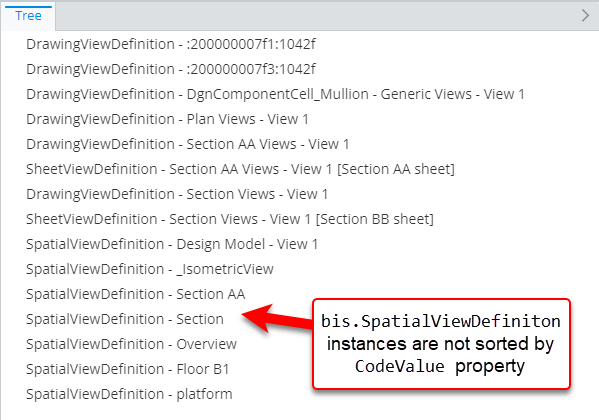

// The ruleset has root node rule that returns `bis.ViewDefinition` instances with labels
// consisting of class name and `CodeValue` property value. Also there two are customization rules to sort
// instances by `CodeValue` property and to disable `bis.SpatialViewDefinition` instances sorting.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["ViewDefinition"], arePolymorphic: true },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "ViewDefinition" },
values: [
{
specType: "Composite",
separator: " - ",
parts: [{ spec: { specType: "ClassName" } }, { spec: { specType: "Property", propertyName: "CodeValue" } }],
},
],
},
{
ruleType: "PropertySorting",
priority: 1,
class: { schemaName: "BisCore", className: "ViewDefinition" },
propertyName: "CodeValue",
isPolymorphic: true,
},
{
ruleType: "DisabledSorting",
priority: 2,
class: { schemaName: "BisCore", className: "SpatialViewDefinition" },
},
],
};
Attribute: isPolymorphic
Specifies that class attribute defined in this rule should be handled polymorphically.
| Type | boolean |
| Is Required | No |
| Default Value | false |
// The ruleset has root node rule that returns `bis.ViewDefinition` instances with labels
// consisting of class name and `CodeValue` property value. Also there are two customization rules to sort
// instances by `CodeValue` property and to disable `bis.ViewDefinition2d` instances sorting polymorphically.
const ruleset: Ruleset = {
id: "example",
rules: [
{
ruleType: "RootNodes",
specifications: [
{
specType: "InstanceNodesOfSpecificClasses",
classes: { schemaName: "BisCore", classNames: ["ViewDefinition"], arePolymorphic: true },
groupByClass: false,
groupByLabel: false,
},
],
},
{
ruleType: "InstanceLabelOverride",
class: { schemaName: "BisCore", className: "ViewDefinition" },
values: [
{
specType: "Composite",
separator: " - ",
parts: [{ spec: { specType: "ClassName" } }, { spec: { specType: "Property", propertyName: "CodeValue" } }],
},
],
},
{
ruleType: "PropertySorting",
priority: 1,
class: { schemaName: "BisCore", className: "ViewDefinition" },
propertyName: "CodeValue",
isPolymorphic: true,
},
{
ruleType: "DisabledSorting",
priority: 2,
class: { schemaName: "BisCore", className: "ViewDefinition2d" },
isPolymorphic: true,
},
],
};

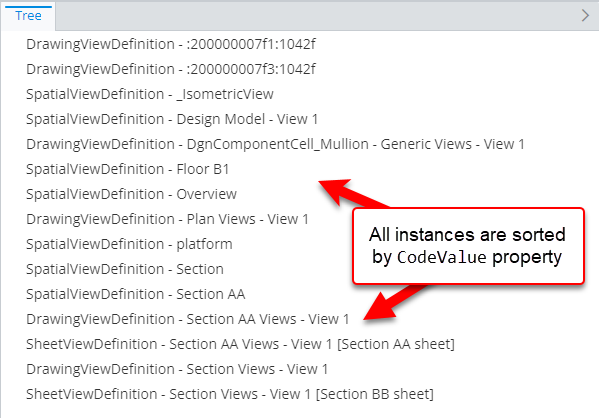

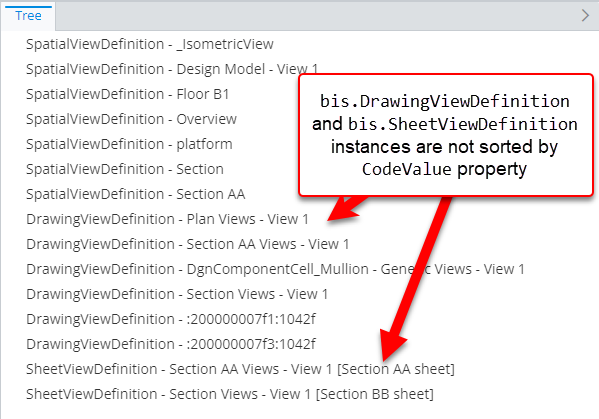

| Result | |
|---|---|
isPolymorphic: true |
 |
isPolymorphic: false |
 |
Last Updated: 29 April, 2025
Found something wrong, missing, or unclear on this page? Raise an issue in our repo.
